Sample config.yml Files

Last updated
Tags Cloud Server v3.x Server v2.x

This document provides sample .circleci/config.yml files, as follows:

Simple configuration examples

Concurrent workflow

The configuration example below shows a concurrent workflow in which the build and test jobs run at the same time. Refer to the Workflows document for complete details about orchestrating job runs with concurrent, sequential, and manual approval workflows.

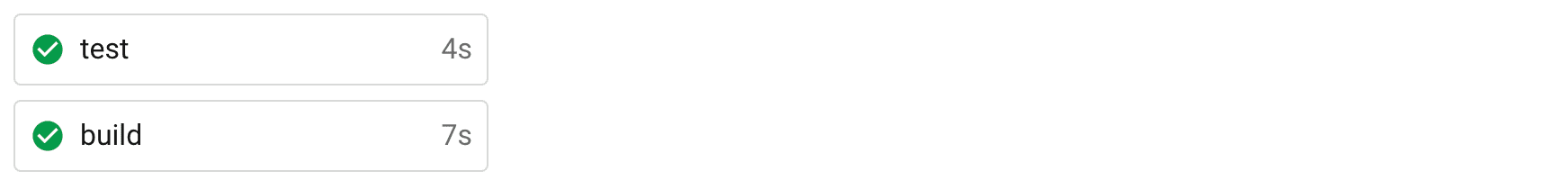

This image shows the workflow view for the following configuration example: Concurrent Workflow Graph

version: 2.1

# Define the jobs we want to run for this project
jobs:
  build:
    docker:
      - image: cimg/<language>:<version TAG>
        auth:
          username: mydockerhub-user
          password: $DOCKERHUB_PASSWORD  # context / project UI env-var reference
    steps:
      - checkout
      - run: echo "this is the build job"
  test:
    docker:
      - image: cimg/<language>:<version TAG>
        auth:
          username: mydockerhub-user
          password: $DOCKERHUB_PASSWORD  # context / project UI env-var reference
    steps:
      - checkout
      - run: echo "this is the test job"

# Orchestrate our job run sequence
workflows:
  build_and_test:
    jobs:
      - build
      - test

version: 2.1

# Define the jobs we want to run for this project
jobs:
  build:
    docker:
      - image: cimg/<language>:<version TAG>
        auth:
          username: mydockerhub-user
          password: $DOCKERHUB_PASSWORD  # context / project UI env-var reference
    steps:
      - checkout
      - run: echo "this is the build job"
  test:
    docker:
      - image: cimg/<language>:<version TAG>
        auth:
          username: mydockerhub-user
          password: $DOCKERHUB_PASSWORD  # context / project UI env-var reference
    steps:
      - checkout
      - run: echo "this is the test job"

# Orchestrate our job run sequence
workflows:
  build_and_test:
    jobs:
      - build
      - test

version: 2

# Define the jobs we want to run for this project
jobs:
  build:
    docker:
      - image: cimg/<language>:<version TAG>
        auth:
          username: mydockerhub-user
          password: $DOCKERHUB_PASSWORD  # context / project UI env-var reference
    steps:
      - checkout
      - run: echo "this is the build job"
  test:
    docker:
      - image: cimg/<language>:<version TAG>
        auth:
          username: mydockerhub-user
          password: $DOCKERHUB_PASSWORD  # context / project UI env-var reference
    steps:
      - checkout
      - run: echo "this is the test job"

# Orchestrate our job run sequence
workflows:
  version: 2
  build_and_test:
    jobs:
      - build
      - test

Sequential workflow

The configuration example below shows a sequential job workflow where the build job runs and then the test job runs once build has completed. Refer to the Workflows document for complete details about orchestrating job runs with concurrent, sequential, and manual approval workflows.

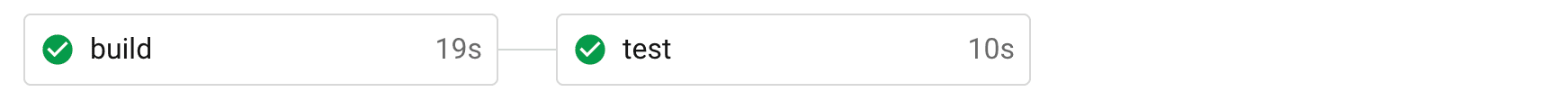

This image shows the workflow view for the following configuration example, in which jobs run sequentially; one after the other: Sequential Workflow Graph

version: 2.1

# Define the jobs we want to run for this project
jobs:
  build:
    docker:
      - image: cimg/<language>:<version TAG>
        auth:
          username: mydockerhub-user
          password: $DOCKERHUB_PASSWORD  # context / project UI env-var reference
    steps:
      - checkout
      - run: echo "this is the build job"
  test:
    docker:
      - image: cimg/<language>:<version TAG>
        auth:
          username: mydockerhub-user
          password: $DOCKERHUB_PASSWORD  # context / project UI env-var reference
    steps:
      - checkout
      - run: echo "this is the test job"

# Orchestrate our job run sequence
workflows:
  build_and_test:
    jobs:
      - build
      - test:
          requires:
            - build

version: 2.1

# Define the jobs we want to run for this project
jobs:
  build:
    docker:
      - image: cimg/<language>:<version TAG>
        auth:
          username: mydockerhub-user
          password: $DOCKERHUB_PASSWORD  # context / project UI env-var reference
    steps:
      - checkout
      - run: echo "this is the build job"
  test:
    docker:
      - image: cimg/<language>:<version TAG>
        auth:
          username: mydockerhub-user
          password: $DOCKERHUB_PASSWORD  # context / project UI env-var reference
    steps:
      - checkout
      - run: echo "this is the test job"

# Orchestrate our job run sequence
workflows:
  build_and_test:
    jobs:
      - build
      - test:
          requires:
            - build

version: 2
# Define the jobs we want to run for this project
jobs:
  build:
    docker:
      - image: cimg/<language>:<version TAG>
        auth:
          username: mydockerhub-user
          password: $DOCKERHUB_PASSWORD  # context / project UI env-var reference
    steps:
      - checkout
      - run: echo "this is the build job"
  test:
    docker:
      - image: cimg/<language>:<version TAG>
        auth:
          username: mydockerhub-user
          password: $DOCKERHUB_PASSWORD  # context / project UI env-var reference
    steps:
      - checkout
      - run: echo "this is the test job"

# Orchestrate our job run sequence
workflows:
  version: 2
  build_and_test:
    jobs:
      - build
      - test:
          requires:
            - build

Approval job

The example below shows a sequential job workflow with an approval step. The build job runs, then the test job, then a hold job, with type: approval ensures the workflow waits for manual approval before the deploy job can run. Refer to the Workflows document for complete details about orchestrating job runs with concurrent, sequential, and manual approval workflows.

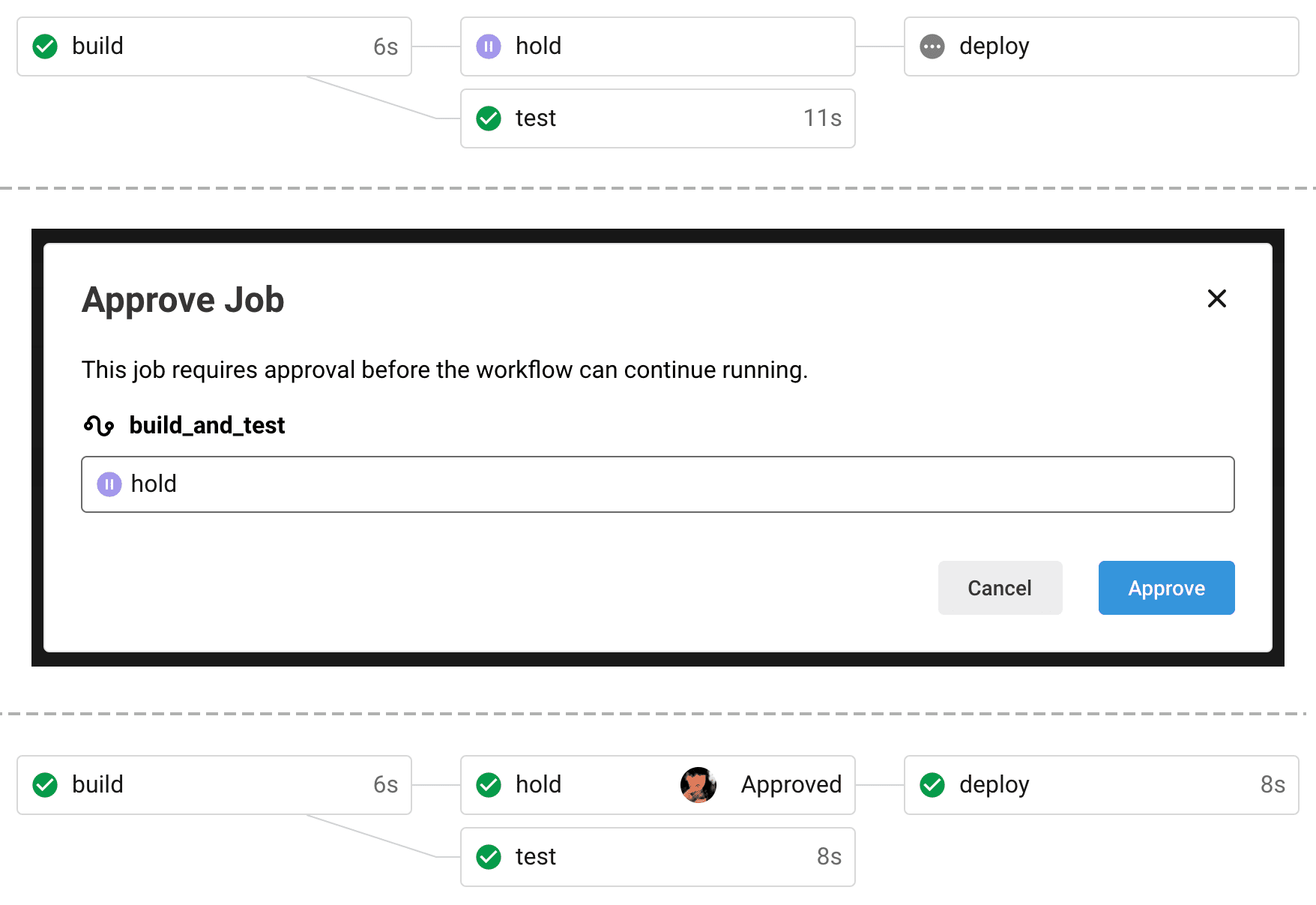

This image shows the workflow view for the following configuration example. This image has three parts to show the approval popup that appears when you click on a hold step in the app, and then the workflow view again once the hold job has been approved and the deploy job has run:

Approval Workflow Graph

version: 2.1

# Define the jobs we want to run for this project
jobs:
  build:
    docker:
      - image: cimg/<language>:<version TAG>
        auth:
          username: mydockerhub-user
          password: $DOCKERHUB_PASSWORD  # context / project UI env-var reference
    steps:
      - checkout
      - run: my-build-commands
  test:
    docker:
      - image: cimg/<language>:<version TAG>
        auth:
          username: mydockerhub-user
          password: $DOCKERHUB_PASSWORD  # context / project UI env-var reference
    steps:
      - checkout
      - run: my-test-commands
  deploy:
    docker:
      - image: cimg/<language>:<version TAG>
        auth:
          username: mydockerhub-user
          password: $DOCKERHUB_PASSWORD  # context / project UI env-var reference
    steps:
      - checkout
      - run: my-deploy-commands

# Orchestrate our job run sequence
workflows:
  build_and_test:
    jobs:
      - build
      - test:
          requires:
            - build
      - hold:
          type: approval
          requires:
            - build
            - test
      - deploy:
          requires:
            - hold

version: 2.1

# Define the jobs we want to run for this project
jobs:
  build:
    docker:
      - image: cimg/<language>:<version TAG>
        auth:
          username: mydockerhub-user
          password: $DOCKERHUB_PASSWORD  # context / project UI env-var reference
    steps:
      - checkout
      - run: my-build-commands
  test:
    docker:
      - image: cimg/<language>:<version TAG>
        auth:
          username: mydockerhub-user
          password: $DOCKERHUB_PASSWORD  # context / project UI env-var reference
    steps:
      - checkout
      - run: my-test-commands
  deploy:
    docker:
      - image: cimg/<language>:<version TAG>
        auth:
          username: mydockerhub-user
          password: $DOCKERHUB_PASSWORD  # context / project UI env-var reference
    steps:
      - checkout
      - run: my-deploy-commands

# Orchestrate our job run sequence
workflows:
  build_and_test:
    jobs:
      - build
      - test:
          requires:
            - build
      - hold:
          type: approval
          requires:
            - build
            - test
      - deploy:
          requires:
            - hold

version: 2

# Define the jobs we want to run for this project
jobs:
  build:
    docker:
      - image: cimg/<language>:<version TAG>
        auth:
          username: mydockerhub-user
          password: $DOCKERHUB_PASSWORD  # context / project UI env-var reference
    steps:
      - checkout
      - run: my-build-commands
  test:
    docker:
      - image: cimg/<language>:<version TAG>
        auth:
          username: mydockerhub-user
          password: $DOCKERHUB_PASSWORD  # context / project UI env-var reference
    steps:
      - checkout
      - run: my-test-commands
  deploy:
    docker:
      - image: cimg/<language>:<version TAG>
        auth:
          username: mydockerhub-user
          password: $DOCKERHUB_PASSWORD  # context / project UI env-var reference
    steps:
      - checkout
      - run: my-deploy-commands

# Orchestrate our job run sequence
workflows:
  version: 2
  build_and_test:
    jobs:
      - build
      - test:
          requires:
            - build
      - hold:
          type: approval
          requires:
            - build
            - test
      - deploy:
          requires:
            - hold

Sample configuration with sequential workflow

Following is a sample .circleci/config.yml file using the following configuration features:

  • A sequential workflow
  • An orb (version: 2.1 config only, and server 3 users will need to ensure the orb has been imported) - the node orb handles caching automatically, but you can see saving and restoring caches in the version: 2.0/Server v2 example
  • A secondary services container
  • Workspaces
  • Storing artifacts
version: 2.1

orbs:
  node: circleci/node@3.0.0

jobs:
  build:
    working_directory: ~/mern-starter
    # Reuse Docker container specification given by the node Orb
    executor: node/default
    steps:
      - checkout
      # Install the latest npm - the node Orb takes care of it
      - node/install-npm
      # Install dependencies - the node Orb take care of installation and dependency caching
      - node/install-packages:
          app-dir: ~/mern-starter
          cache-path: node_modules
          override-ci-command: npm i
      # Save workspace for subsequent jobs (i.e. test)
      - persist_to_workspace:
          root: .
          paths:
            - .

  test:
    docker:
      # The primary container is an instance of the first image listed. The job's commands run in this container.
      - image: cimg/node:current
        auth:
          username: mydockerhub-user
          password: $DOCKERHUB_PASSWORD  # context / project UI env-var reference
      # The secondary container is an instance of the second listed image which is run in a common network where ports exposed on the primary container are available on localhost.
      - image: mongo:4.2
        auth:
          username: mydockerhub-user
          password: $DOCKERHUB_PASSWORD  # context / project UI env-var reference
    steps:
      # Reuse the workspace from the build job
      - attach_workspace:
          at: .
      - run:
          name: Demonstrate that Mongo DB is available as localhost
          command: |
            curl -sSJL https://www.mongodb.org/static/pgp/server-4.2.asc | sudo apt-key add -
            echo "deb [ arch=amd64,arm64 ] https://repo.mongodb.org/apt/ubuntu bionic/mongodb-org/4.2 multiverse" | sudo tee /etc/apt/sources.list.d/mongodb-org-4.2.list
            sudo apt update
            sudo apt install mongodb-org
            mongo localhost --eval 'db.serverStatus()'
      - run:
          name: Test
          command: npm test
      - run:
          name: Generate code coverage
          command: './node_modules/.bin/nyc report --reporter=text-lcov'
      # You can specify either a single file or a directory to store as artifacts
      - store_artifacts:
          path: test-results.xml
          destination: deliverable.xml
      - store_artifacts:
          path: coverage
          destination: coverage

workflows:
  version: 2
  build_and_test:
    jobs:
      - build
      - test:
          requires:
            - build

version: 2.1

orbs:
  node: circleci/node@3.0.0

jobs:
  build:
    working_directory: ~/mern-starter
    # Reuse Docker container specification given by the node Orb
    executor: node/default
    steps:
      - checkout
      # Install the latest npm - the node Orb takes care of it
      - node/install-npm
      # Install dependencies - the node Orb take care of installation and dependency caching
      - node/install-packages:
          app-dir: ~/mern-starter
          cache-path: node_modules
          override-ci-command: npm i
      # Save workspace for subsequent jobs (i.e. test)
      - persist_to_workspace:
          root: .
          paths:
            - .

  test:
    docker:
      # The primary container is an instance of the first image listed. The job's commands run in this container.
      - image: cimg/node:current
        auth:
          username: mydockerhub-user
          password: $DOCKERHUB_PASSWORD  # context / project UI env-var reference
      # The secondary container is an instance of the second listed image which is run in a common network where ports exposed on the primary container are available on localhost.
      - image: mongo:4.2
        auth:
          username: mydockerhub-user
          password: $DOCKERHUB_PASSWORD  # context / project UI env-var reference
    steps:
      # Reuse the workspace from the build job
      - attach_workspace:
          at: .
      - run:
          name: Demonstrate that Mongo DB is available as localhost
          command: |
            curl -sSJL https://www.mongodb.org/static/pgp/server-4.2.asc | sudo apt-key add -
            echo "deb [ arch=amd64,arm64 ] https://repo.mongodb.org/apt/ubuntu bionic/mongodb-org/4.2 multiverse" | sudo tee /etc/apt/sources.list.d/mongodb-org-4.2.list
            sudo apt update
            sudo apt install mongodb-org
            mongo localhost --eval 'db.serverStatus()'
      - run:
          name: Test
          command: npm test
      - run:
          name: Generate code coverage
          command: './node_modules/.bin/nyc report --reporter=text-lcov'
      # You can specify either a single file or a directory to store as artifacts
      - store_artifacts:
          path: test-results.xml
          destination: deliverable.xml
      - store_artifacts:
          path: coverage
          destination: coverage

workflows:
  version: 2
  build_and_test:
    jobs:
      - build
      - test:
          requires:
            - build

version: 2

jobs:
  build:
    working_directory: ~/mern-starter
    # The primary container is an instance of the first image listed. The job's commands run in this container.
    docker:
      - image: cimg/node:16.13.1
        auth:
          username: mydockerhub-user
          password: $DOCKERHUB_PASSWORD  # context / project UI env-var reference
    # The secondary container is an instance of the second listed image which is run in a common network where ports exposed on the primary container are available on localhost.
      - image: mongo:3.4.4-jessie
        auth:
          username: mydockerhub-user
          password: $DOCKERHUB_PASSWORD  # context / project UI env-var reference
    steps:
      - checkout
      - run:
          name: Update npm
          command: 'sudo npm install -g npm@latest'
      - restore_cache:
          key: dependency-cache-{{ checksum "package-lock.json" }}
      - run:
          name: Install npm wee
          command: npm install
      - save_cache:
          key: dependency-cache-{{ checksum "package-lock.json" }}
          paths:
            - node_modules
  test:
    docker:
      - image: cimg/node:16.13.1
        auth:
          username: mydockerhub-user
          password: $DOCKERHUB_PASSWORD  # context / project UI env-var reference
      - image: mongo:3.4.4-jessie
        auth:
          username: mydockerhub-user
          password: $DOCKERHUB_PASSWORD  # context / project UI env-var reference
    steps:
      - checkout
      - run:
          name: Test
          command: npm test
      - run:
          name: Generate code coverage
          command: './node_modules/.bin/nyc report --reporter=text-lcov'
      - store_artifacts:
          path: test-results.xml
          prefix: tests
      - store_artifacts:
          path: coverage
          prefix: coverage

workflows:
  version: 2
  build_and_test:
    jobs:
      - build
      - test:
          requires:
            - build
          filters:
            branches:
              only: main

This example shows a sequential workflow with the test job configured to run only on the main branch. Refer to the Workflows document for complete details about orchestrating job runs with concurrent, sequential, and manual approval workflows.

Sample configuration with fan-in/fan-out workflow

Below are two sample configurations for a Fan-in/Fan-out workflow.

For the Server/2.0 config example, refer to the complete demo repo on GitHub for details.

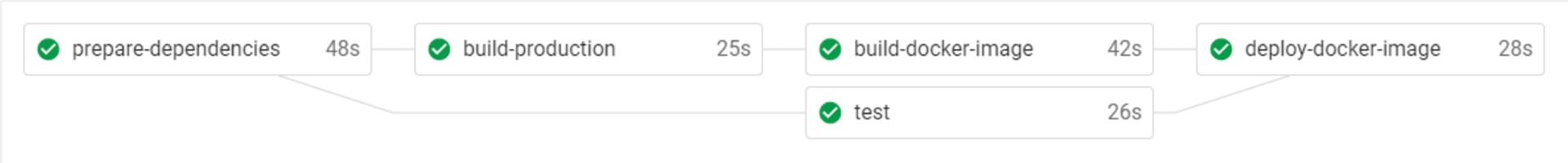

For the Cloud/2.1 example, see the following workflow graph:

Fan-in-out

version: 2.1

orbs:
    docker: circleci/docker@1.0.1

jobs:
    prepare-dependencies:
        docker:
            - image: node:current-alpine
              auth:
                username: mydockerhub-user
                password: $DOCKERHUB_PASSWORD  # context / project UI env-var reference
        steps:
            - checkout
            - run:
                  name: Compute version number
                  command: echo "0.0.${CIRCLE_BUILD_NUM}-${CIRCLE_SHA1:0:7}" | tee version.txt
            - restore_cache:
                  keys:
                      - yarn-deps-{{ checksum "yarn.lock" }}
                      - yarn-deps
            - run:
                  name: yarn install
                  command: yarn install
            - save_cache:
                  paths:
                      - node_modules
                  key: yarn-deps-{{ checksum "yarn.lock" }}-{{ epoch }}
            - store_artifacts:
                  path: yarn.lock
            - persist_to_workspace:
                  root: .
                  paths:
                      - .

    build-production:
        docker:
            - image: node:current-alpine
              auth:
                username: mydockerhub-user
                password: $DOCKERHUB_PASSWORD  # context / project UI env-var reference
        steps:
            - attach_workspace:
                  at: .
            - run:
                  name: Production build
                  command: |
                      export __BUILD_VERSION="$(cat version.txt)"
                      yarn build
            - store_artifacts:
                  path: dist/server.js
            - persist_to_workspace:
                  root: .
                  paths:
                      - .

    build-docker-image:
        machine:
            # The image uses the current tag, which always points to the most recent
            # supported release. If stability and determinism are crucial for your CI
            # pipeline, use a release date tag with your image, e.g. ubuntu-2004:202201-02
            image: ubuntu-2004:current
        steps:
            - attach_workspace:
                  at: .
            - run:
                  name: Setup __BUILD_VERSION envvar
                  command: |
                      echo "export __BUILD_VERSION=\"$(cat version.txt)\"" >> $BASH_ENV
            - docker/check:
                  registry: $DOCKER_REGISTRY
            - docker/build:
                  image: $DOCKER_IMAGE_NAME
                  tag: $__BUILD_VERSION
                  registry: $DOCKER_REGISTRY
            - docker/push:
                  image: $DOCKER_IMAGE_NAME
                  tag: $__BUILD_VERSION
                  registry: $DOCKER_REGISTRY

    test:
        docker:
            - image: node:current-alpine
              auth:
                username: mydockerhub-user
                password: $DOCKERHUB_PASSWORD  # context / project UI env-var reference
        parallelism: 2
        steps:
            - attach_workspace:
                  at: .
            - run:
                  name: Run tests
                  command: |
                      circleci tests glob '**/*.test.ts' | circleci tests split --split-by timings | xargs yarn test:ci
            - store_artifacts:
                  path: test-results
            - store_test_results:
                  path: test-results

    deploy-docker-image:
        machine:
            image: ubuntu-2004:current
        steps:
            - attach_workspace:
                  at: .
            - run:
                  name: Setup __BUILD_VERSION envvar
                  command: |
                      echo "export __BUILD_VERSION=\"$(cat version.txt)\"" >> $BASH_ENV
            - docker/check:
                  registry: $DOCKER_REGISTRY
            - docker/pull:
                  images: $DOCKER_REGISTRY/$DOCKER_IMAGE_NAME:$__BUILD_VERSION
            - run:
                  name: Tag the image as latest
                  command: docker tag $DOCKER_REGISTRY/$DOCKER_IMAGE_NAME:$__BUILD_VERSION $DOCKER_REGISTRY/$DOCKER_IMAGE_NAME:latest
            - docker/push:
                  image: $DOCKER_IMAGE_NAME
                  tag: latest
                  registry: $DOCKER_REGISTRY

workflows:
    version: 2
    build-test-deploy:
        jobs:
            - prepare-dependencies
            - build-production:
                  requires:
                      - prepare-dependencies
            - build-docker-image:
                  context: docker-hub
                  requires:
                      - build-production
            - test:
                  requires:
                      - prepare-dependencies
            - deploy-docker-image:
                  context: docker-hub
                  requires:
                      - build-docker-image
                      - test

version: 2.1

orbs:
    docker: circleci/docker@1.0.1

jobs:
    prepare-dependencies:
        docker:
            - image: node:current-alpine
              auth:
                username: mydockerhub-user
                password: $DOCKERHUB_PASSWORD  # context / project UI env-var reference
        steps:
            - checkout
            - run:
                  name: Compute version number
                  command: echo "0.0.${CIRCLE_BUILD_NUM}-${CIRCLE_SHA1:0:7}" | tee version.txt
            - restore_cache:
                  keys:
                      - yarn-deps-{{ checksum "yarn.lock" }}
                      - yarn-deps
            - run:
                  name: yarn install
                  command: yarn install
            - save_cache:
                  paths:
                      - node_modules
                  key: yarn-deps-{{ checksum "yarn.lock" }}-{{ epoch }}
            - store_artifacts:
                  path: yarn.lock
            - persist_to_workspace:
                  root: .
                  paths:
                      - .

    build-production:
        docker:
            - image: node:current-alpine
              auth:
                username: mydockerhub-user
                password: $DOCKERHUB_PASSWORD  # context / project UI env-var reference
        steps:
            - attach_workspace:
                  at: .
            - run:
                  name: Production build
                  command: |
                      export __BUILD_VERSION="$(cat version.txt)"
                      yarn build
            - store_artifacts:
                  path: dist/server.js
            - persist_to_workspace:
                  root: .
                  paths:
                      - .

    build-docker-image:
        machine:
            # The image uses the current tag, which always points to the most recent
            # supported release. If stability and determinism are crucial for your CI
            # pipeline, use a release date tag with your image, e.g. ubuntu-2004:202201-02
            image: ubuntu-2004:current
        steps:
            - attach_workspace:
                  at: .
            - run:
                  name: Setup __BUILD_VERSION envvar
                  command: |
                      echo "export __BUILD_VERSION=\"$(cat version.txt)\"" >> $BASH_ENV
            - docker/check:
                  registry: $DOCKER_REGISTRY
            - docker/build:
                  image: $DOCKER_IMAGE_NAME
                  tag: $__BUILD_VERSION
                  registry: $DOCKER_REGISTRY
            - docker/push:
                  image: $DOCKER_IMAGE_NAME
                  tag: $__BUILD_VERSION
                  registry: $DOCKER_REGISTRY

    test:
        docker:
            - image: node:current-alpine
              auth:
                username: mydockerhub-user
                password: $DOCKERHUB_PASSWORD  # context / project UI env-var reference
        parallelism: 2
        steps:
            - attach_workspace:
                  at: .
            - run:
                  name: Run tests
                  command: |
                      circleci tests glob '**/*.test.ts' | circleci tests split --split-by timings | xargs yarn test:ci
            - store_artifacts:
                  path: test-results
            - store_test_results:
                  path: test-results

    deploy-docker-image:
        machine:
            image: ubuntu-2004:current
        steps:
            - attach_workspace:
                  at: .
            - run:
                  name: Setup __BUILD_VERSION envvar
                  command: |
                      echo "export __BUILD_VERSION=\"$(cat version.txt)\"" >> $BASH_ENV
            - docker/check:
                  registry: $DOCKER_REGISTRY
            - docker/pull:
                  images: $DOCKER_REGISTRY/$DOCKER_IMAGE_NAME:$__BUILD_VERSION
            - run:
                  name: Tag the image as latest
                  command: docker tag $DOCKER_REGISTRY/$DOCKER_IMAGE_NAME:$__BUILD_VERSION $DOCKER_REGISTRY/$DOCKER_IMAGE_NAME:latest
            - docker/push:
                  image: $DOCKER_IMAGE_NAME
                  tag: latest
                  registry: $DOCKER_REGISTRY

workflows:
    version: 2
    build-test-deploy:
        jobs:
            - prepare-dependencies
            - build-production:
                  requires:
                      - prepare-dependencies
            - build-docker-image:
                  context: docker-hub
                  requires:
                      - build-production
            - test:
                  requires:
                      - prepare-dependencies
            - deploy-docker-image:
                  context: docker-hub
                  requires:
                      - build-docker-image
                      - test

version: 2.0

jobs:
  checkout_code:
    docker:
      - image: circleci/ruby:3.1.0-node
        auth:
          username: mydockerhub-user
          password: $DOCKERHUB_PASSWORD  # context / project UI env-var reference
      - image: cimg/postgres:14.0
        auth:
          username: mydockerhub-user
          password: $DOCKERHUB_PASSWORD  # context / project UI env-var reference
    working_directory: ~/circleci-demo-workflows
    steps:
      - checkout
      - save_cache:
          key: v1-repo-{{ .Environment.CIRCLE_SHA1 }}
          paths:
            - ~/circleci-demo-workflows

  bundle_dependencies:
    docker:
      - image: circleci/ruby:3.1.0-node
        auth:
          username: mydockerhub-user
          password: $DOCKERHUB_PASSWORD  # context / project UI env-var reference
      - image: cimg/postgres:14.0
        auth:
          username: mydockerhub-user
          password: $DOCKERHUB_PASSWORD  # context / project UI env-var reference
    working_directory: ~/circleci-demo-workflows
    steps:
      - restore_cache:
          key: v1-repo-{{ .Environment.CIRCLE_SHA1 }}
      - restore_cache:
          key: v1-bundle-{{ checksum "Gemfile.lock" }}
      - run: bundle install --path vendor/bundle
      - save_cache:
          key: v1-bundle-{{ checksum "Gemfile.lock" }}
          paths:
            - ~/circleci-demo-workflows/vendor/bundle

  rake_test:
    docker:
      - image: circleci/ruby:3.1.0-node
        auth:
          username: mydockerhub-user
          password: $DOCKERHUB_PASSWORD  # context / project UI env-var reference
      - image: cimg/postgres:14.0
        auth:
          username: mydockerhub-user
          password: $DOCKERHUB_PASSWORD  # context / project UI env-var reference
    working_directory: ~/circleci-demo-workflows
    steps:
      - restore_cache:
          key: v1-repo-{{ .Environment.CIRCLE_SHA1 }}
      - restore_cache:
          key: v1-bundle-{{ checksum "Gemfile.lock" }}
      - run: bundle --path vendor/bundle
      - run: bundle exec rake db:create db:schema:load
      - run:
          name: Run tests
          command: bundle exec rake

  precompile_assets:
    docker:
      - image: circleci/ruby:3.1.0-node
        auth:
          username: mydockerhub-user
          password: $DOCKERHUB_PASSWORD  # context / project UI env-var reference
      - image: cimg/postgres:14.0
        auth:
          username: mydockerhub-user
          password: $DOCKERHUB_PASSWORD  # context / project UI env-var reference
    working_directory: ~/circleci-demo-workflows
    steps:
      - restore_cache:
          key: v1-repo-{{ .Environment.CIRCLE_SHA1 }}
      - restore_cache:
          key: v1-bundle-{{ checksum "Gemfile.lock" }}
      - run: bundle --path vendor/bundle
      - run:
          name: Precompile assets
          command: bundle exec rake assets:precompile
      - save_cache:
          key: v1-assets-{{ .Environment.CIRCLE_SHA1 }}
          paths:
            - ~/circleci-demo-workflows/public/assets

  deploy:
    machine:
        enabled: true
    working_directory: ~/circleci-demo-workflows
    environment:
      HEROKU_APP: still-shelf-38337
    steps:
      - restore_cache:
          key: v1-repo-{{ .Environment.CIRCLE_SHA1 }}
      - restore_cache:
          key: v1-bundle-{{ checksum "Gemfile.lock" }}
      - restore_cache:
          key: v1-assets-{{ .Environment.CIRCLE_SHA1 }}
      - run:
          name: Deploy Main to Heroku
          command: |
            git push https://heroku:$HEROKU_API_KEY@git.heroku.com/$HEROKU_APP.git main

workflows:
  version: 2
  build-and-deploy:
    jobs:
      - checkout_code
      - bundle_dependencies:
          requires:
            - checkout_code
      - rake_test:
          requires:
            - bundle_dependencies
      - precompile_assets:
          requires:
            - bundle_dependencies
      - deploy:
          requires:
            - rake_test
            - precompile_assets

Note: a job can only run when its dependencies are satisfied therefore it requires the dependencies of all upstream jobs. This means only the immediate upstream dependencies need to be specified in the requires: blocks.

Sample configuration with multiple executor types

It is possible to use multiple executor types in the same workflow.

In Example-1 each push will build and test the project on Linux, Windows and macOS.

In Example-2 each push of an iOS project will be built on macOS, and additional iOS tools (SwiftLint and Danger) will be run in Docker.

version: 2.1

orbs:
  github-release: haskell-works/github-release@1.3.3

parameters:
  src-repo-url:
    type: string
    default: https://github.com/esnet/iperf.git
  branch-name:
    type: string
    default: "3.8.1"
  common-build-params:
    type: string
    default: "--disable-shared --disable-static"

jobs:
  build-linux:
    docker:
      - image: archlinux/base
        auth:
          username: mydockerhub-user
          password: $DOCKERHUB_PASSWORD  # context / project UI env-var reference
    parameters:
      label:
        type: string
        default: iperf3-linux
    steps:
      - run:
          name: Install dependencies
          command: pacman -Syu --noconfirm openssl git gcc make awk tar
      - run:
          name: Clone iperf3
          command: git clone << pipeline.parameters.src-repo-url >> -b << pipeline.parameters.branch-name >>
      - run:
          name: Build iperf3
          working_directory: iperf
          command: |
            CIRCLE_WORKING_DIRECTORY=$(eval "echo $CIRCLE_WORKING_DIRECTORY")
            IPERF3_MAKE_PREFIX=$CIRCLE_WORKING_DIRECTORY/<< parameters.label >>
            ./configure --prefix=$IPERF3_MAKE_PREFIX << pipeline.parameters.common-build-params >>
            make
            mkdir -p $IPERF3_MAKE_PREFIX
            make install
      - run:
          name: Create a tarball
          command: tar -cJf << parameters.label >>.tar.xz << parameters.label >>
      - persist_to_workspace:
          root: .
          paths:
            - << parameters.label >>.tar.xz
      - store_artifacts:
          path: << parameters.label >>.tar.xz

  build-windows:
    machine:
      image: windows-server-2019-vs2019:stable
      shell: powershell.exe
    resource_class: windows.medium
    parameters:
      label:
        type: string
        default: iperf3-cygwin64
    steps:
      - run:
          name: Download Cygwin installer
          shell: bash.exe
          command: |
            curl -sSJOL https://cygwin.com/setup-x86_64.exe
      - run:
          name: Install Cygwin and required packages
          command: .\setup-x86_64.exe -q -s https://mirrors.kernel.org/sourceware/cygwin/ -P libssl-devel,git,gcc-core,make
      - run:
          name: Build iperf3 with Cygwin
          shell: C:\\cygwin64\\bin\\bash.exe --login -eo pipefail
          command: |
            CIRCLE_WORKING_DIRECTORY=$(eval "echo $CIRCLE_WORKING_DIRECTORY")
            IPERF3_MAKE_PREFIX=$CIRCLE_WORKING_DIRECTORY/<< parameters.label >>
            cd $CIRCLE_WORKING_DIRECTORY
            git clone << pipeline.parameters.src-repo-url >> -b << pipeline.parameters.branch-name >>
            cd iperf
            ./configure --prefix=$IPERF3_MAKE_PREFIX << pipeline.parameters.common-build-params >>
            make
            mkdir -p $IPERF3_MAKE_PREFIX
            make install
            cp /usr/bin/cygwin1.dll /usr/bin/cygcrypto-1.1.dll /usr/bin/cygz.dll -t $IPERF3_MAKE_PREFIX/bin
      - run:
          name: Create a Zip file
          command: |
            $ProgressPreference = "SilentlyContinue"
            Compress-Archive .\\<< parameters.label >> .\\<< parameters.label >>.zip
      - persist_to_workspace:
          root: .
          paths:
            - << parameters.label >>.zip
      - store_artifacts:
          path: << parameters.label >>.zip

  build-macos:
    macos:
      xcode: 12.5.1
    parameters:
      label:
        type: string
        default: iperf3-macos
    steps:
      - run:
          name: Clone iperf3
          command: git clone << pipeline.parameters.src-repo-url >> -b << pipeline.parameters.branch-name >>
      - run:
          name: Build iperf3
          working_directory: iperf
          command: |
            CIRCLE_WORKING_DIRECTORY=$(eval "echo $CIRCLE_WORKING_DIRECTORY")
            IPERF3_MAKE_PREFIX=$CIRCLE_WORKING_DIRECTORY/<< parameters.label >>
            ./configure --prefix=$IPERF3_MAKE_PREFIX --with-openssl=$(brew --prefix openssl) << pipeline.parameters.common-build-params >>
            make
            mkdir -p $IPERF3_MAKE_PREFIX
            make install
            # Postruns
            cd $IPERF3_MAKE_PREFIX/bin
            # Copy linked OpenSSL libraris to the current directory
            # and tell the linker to refer to them
            otool -L iperf3 | grep openssl | awk '{ print $1 }' | while read dylib
            do
              name=$(basename $dylib)
              cp $dylib ./
              chmod u+w $name
              install_name_tool -change $dylib @executable_path/$name iperf3
            done
            # Modify libssl as well
            otool -L libssl.1.1.dylib | grep openssl | awk '{ print $1 }' | while read dylib
            do
              install_name_tool -change $dylib @executable_path/$(basename $dylib) libssl.1.1.dylib
            done
      - run:
          name: Create a Zip file
          command: zip -r << parameters.label >>.zip << parameters.label >>
      - persist_to_workspace:
          root: .
          paths:
            - << parameters.label >>.zip
      - store_artifacts:
          path: << parameters.label >>.zip

  test-linux:
    docker:
      - image: cimg/base:stable
        auth:
          username: mydockerhub-user
          password: $DOCKERHUB_PASSWORD  # context / project UI env-var reference
    parameters:
      label:
        type: string
        default: iperf3-linux
    steps:
      - attach_workspace:
          at: ./
      - run:
          name: Extract << parameters.label >>.tar.xz
          command: tar -xf << parameters.label >>.tar.xz
      - run:
          name: Test executable
          command: << parameters.label >>/bin/iperf3 -v
      - run:
          name: Run as a server
          command: << parameters.label >>/bin/iperf3 -s
          background: true
      - run:
          name: Run as a client
          command: << parameters.label >>/bin/iperf3 -c localhost -R

  test-windows:
    machine:
      image: windows-server-2019-vs2019:stable
      shell: powershell.exe
    resource_class: windows.medium
    parameters:
      label:
        type: string
        default: iperf3-cygwin64
    steps:
      - attach_workspace:
          at: .
      - run:
          name: Extract iperf3-cygwin64.zip
          command: |
            $ProgressPreference = "SilentlyContinue"
            Expand-Archive .\\<< parameters.label >>.zip .
      - run:
          name: Test executable
          command: .\\<< parameters.label >>\bin\iperf3.exe -v
      - run:
          name: Run as a server
          command: .\\<< parameters.label >>\bin\iperf3.exe -s
          background: true
      - run:
          name: Run as a client
          command: .\\<< parameters.label >>\bin\iperf3.exe -c localhost -R

  test-macos:
    macos:
      xcode: 12.5.1
    parameters:
      label:
        type: string
        default: iperf3-macos
    steps:
      - attach_workspace:
          at: .
      - run:
          name: Uninstall pre-installed OpenSSL
          command: brew uninstall --ignore-dependencies openssl
      - run:
          name: Extract << parameters.label >>
          command: unzip << parameters.label >>
      - run:
          name: Test executable
          command: << parameters.label >>/bin/iperf3 -v
      - run:
          name: Run as a server
          command: << parameters.label >>/bin/iperf3 -s
          background: true
      - run:
          name: Run as a client
          command: << parameters.label >>/bin/iperf3 -c localhost -R

  release:
    executor: github-release/default
    steps:
      - attach_workspace:
          at: .
      - run:
          name: Compute version number
          command: |
            echo "export IPERF3_BUILD_VERSION=\"<< pipeline.parameters.branch-name>>-${CIRCLE_BUILD_NUM}-${CIRCLE_SHA1:0:7}\"" | tee -a $BASH_ENV
      - github-release/release:
          tag: v$IPERF3_BUILD_VERSION
          title: $IPERF3_BUILD_VERSION
          artefacts-folder: .

workflows:
  version: 2
  build-test-release:
    jobs:
      - build-linux
      - build-windows
      - build-macos
      - test-linux:
          requires:
            - build-linux
      - test-windows:
          requires:
            - build-windows
      - test-macos:
          requires:
            - build-macos
      - release:
          requires:
            - test-linux
            - test-windows
            - test-macos
          context: github
          filters:
            branches:
              only: main

version: 2.1

jobs:
  build-and-test:
    macos:
      xcode: 12.5.1
    steps:
      - checkout
      - run:
          name: Install CocoaPods
          command: pod install --verbose
      - run:
          name: Build and run tests
          command: fastlane scan
          environment:
            SCAN_DEVICE: iPhone 8
            SCAN_SCHEME: WebTests
      - store_test_results:
          path: test_output/report.xml
      - store_artifacts:
          path: /tmp/test-results
          destination: scan-test-results
      - store_artifacts:
          path: ~/Library/Logs/scan
          destination: scan-logs

  swiftlint:
    docker:
      - image: dantoml/swiftlint:latest
        auth:
          username: mydockerhub-user
          password: $DOCKERHUB_PASSWORD  # context / project UI env-var reference
    steps:
      - checkout
      - run: swiftlint lint --reporter junit | tee result.xml
      - store_artifacts:
          path: result.xml
      - store_test_results:
          path: result.xml

  danger:
    docker:
      - image: dantoml/danger:latest
        auth:
          username: mydockerhub-user
          password: $DOCKERHUB_PASSWORD  # context / project UI env-var reference
    steps:
      - checkout
      - run: danger

workflows:
  build-test-lint:
    jobs:
      - swiftlint
      - danger
      - build-and-test

See also


Help make this document better

This guide, as well as the rest of our docs, are open source and available on GitHub. We welcome your contributions.

Need support?

Our support engineers are available to help with service issues, billing, or account related questions, and can help troubleshoot build configurations. Contact our support engineers by opening a ticket.

You can also visit our support site to find support articles, community forums, and training resources.

Creative Commons License
CircleCI Documentation by CircleCI is licensed under a Creative Commons Attribution-NonCommercial-ShareAlike 4.0 International License.

6,000 Minutes Free

CircleCI, now with more build minutes
than anyone else for FREE 🎉

Sign up for Free

These teams get it

CCI customer teams
