Continuous deployment of a Dockerized .NET Core app to AWS ECR
Fullstack Developer and Tech Author
This tutorial covers:
- Creating a container image for a cloned .NET demo application, building and running the container locally
- Deploying the Docker image to AWS ECR
- Writing a configuration file to automate building and deploying your container image using CircleCI
Containers are a useful tool for deploying applications because they allow for the packaging of an application’s code, libraries, and dependencies into a single, isolated unit. This makes it easy to deploy and run the application on any computer or server that has the necessary container software installed.
AWS Elastic Container Registry (ECR) is a managed container registry service used to store, manage, and deploy container images. It is fully integrated with other AWS services and provides a scalable and secure way to manage your container images. ECR allows you to store and retrieve images using the Docker CLI, and also integrates with other Docker tools like Docker Compose and Docker Swarm. With ECR, you can easily store and manage your Docker images in a central location and access them from anywhere in your AWS account.
In this tutorial, you will build an ASP.NET Core container with Docker and push the container image to Amazon Elastic Container Registry (Amazon ECR). When you complete the project, every new container image built as a result of changes made to your codebase will be pushed and stored on the AWS container registry.
Prerequisites
You will need the following for this tutorial:
- Basic knowledge of building applications with ASP.NET Core framework.
- Docker Desktop installed on your local machine. You can follow Docker’s tutorial for Windows or macOS.
- A CircleCI account.
- An AWS account.
- A GitHub account.
Our tutorials are platform-agnostic, but use CircleCI as an example. If you don’t have a CircleCI account, sign up for a free one here.
Cloning the demo project
To begin, issue this command from the terminal to clone the demo project from GitHub using Git:
git clone https://github.com/CIRCLECI-GWP/docker-dotnet-api-ecr
This will clone the project into a docker-dotnet-api-ecr folder in your development folder (or whenever you ran the command from).
Building the Docker image locally
To build a custom Docker image for this project, you need to create a special type of file named Dockerfile.
Dockerfile is a text file that contains a set of instructions for building a Docker image. It is a simple, yet powerful tool that allows developers to define the environment and dependencies needed to run their applications in a consistent and reliable manner.
In this tutorial, you will use the Dockerfile included in the downloaded demo project to build the custom container image. The Dockerfile has the commands needed to install all the project’s dependencies, build the project, and run it.
Go to the root directory of the application, open the Dockerfile, and make sure it has this content:
# Build Stage
FROM mcr.microsoft.com/dotnet/sdk:10.0 AS build
WORKDIR /src
COPY . ./
RUN dotnet restore
RUN dotnet publish -c Release -o out
# Serve Stage
FROM mcr.microsoft.com/dotnet/aspnet:10.0
WORKDIR /app
COPY --from=build /src/out .
ENTRYPOINT [ "dotnet", "docker-dotnet-api.dll" ]
There are two different stages specified in this file:
Builduses the .NET SDK image to install any required dependencies before building the project and publishing it to a folder namedout.Serveuses the ASP.NET Core runtime image to run the application from the specified working directory, which isappin this case.
This is sometimes called a multi-stage Dockerfile. It combines development and production instructions into a single Dockerfile and reduces complexity in the process.
Next, issue this command to build the Docker image:
docker build -t dotnet-api:latest .
Based on the content of the application and the Dockerfile, this command will build the container image. You can confirm that the image was created using the command below to print out list of container images:
docker images
You will see a list of images, including dotnet-api.
IMAGE ID DISK USAGE CONTENT SIZE EXTRA
dotnet-api:latest 5078af71d85a 373MB 94.8MB
Running the Docker image locally
With the local version of the container image successfully built, run it with this command:
docker run -dit -p 5001:8080 dotnet-api:latest

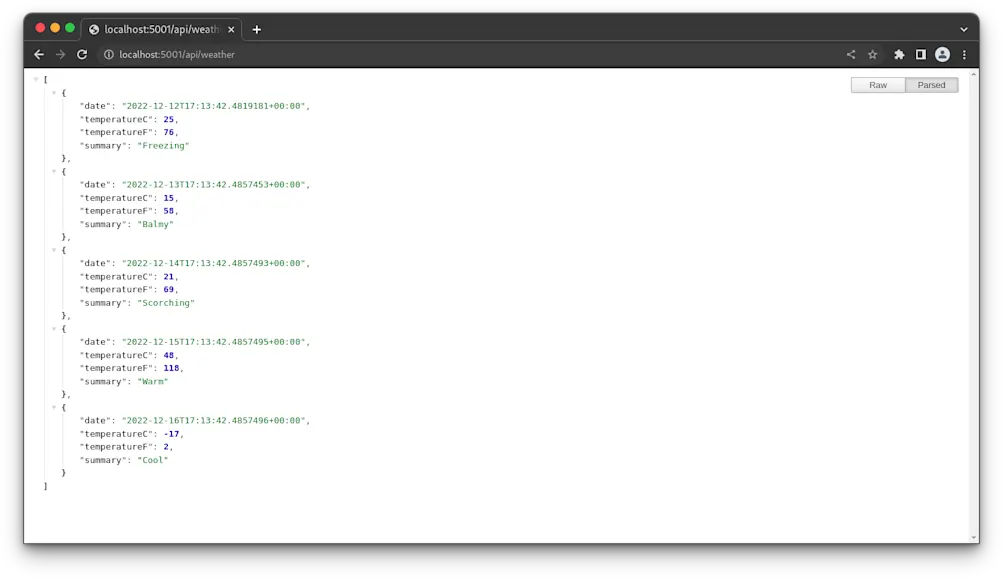

This command runs the container in the background, prints the container ID to the terminal, and maps port 5001 on the host to port 8080 in the container. Since .NET 8, ASP.NET Core container images listen on port 8080 by default. Visit http://localhost:5001/api/weather to review it.
Deploying the Docker image to Amazon ECR

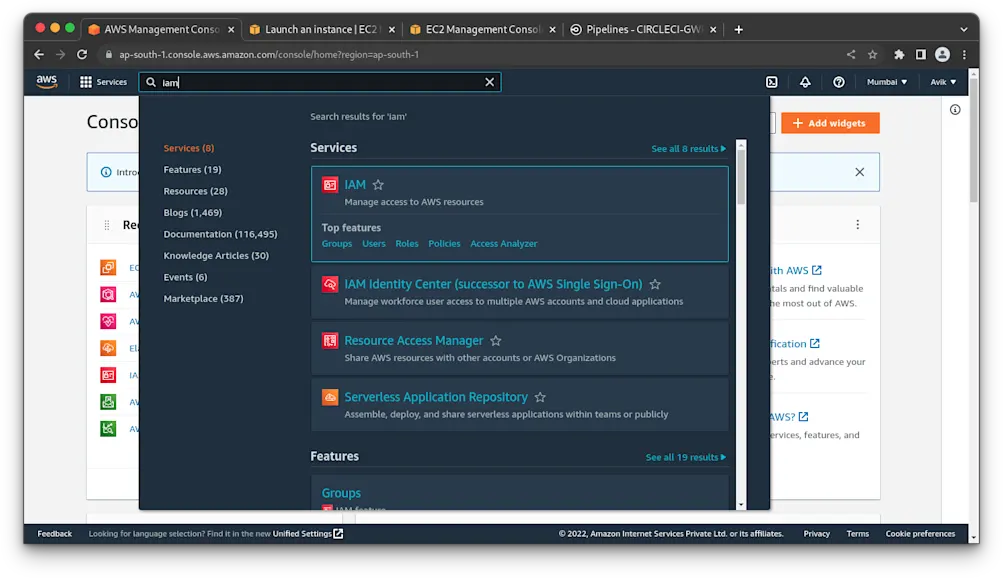

In this section, you will create a user that will programmatically have access to push container images to the Amazon registry. To do that, navigate to AWS management console and select IAM. This service lets you manage access to AWS resources.

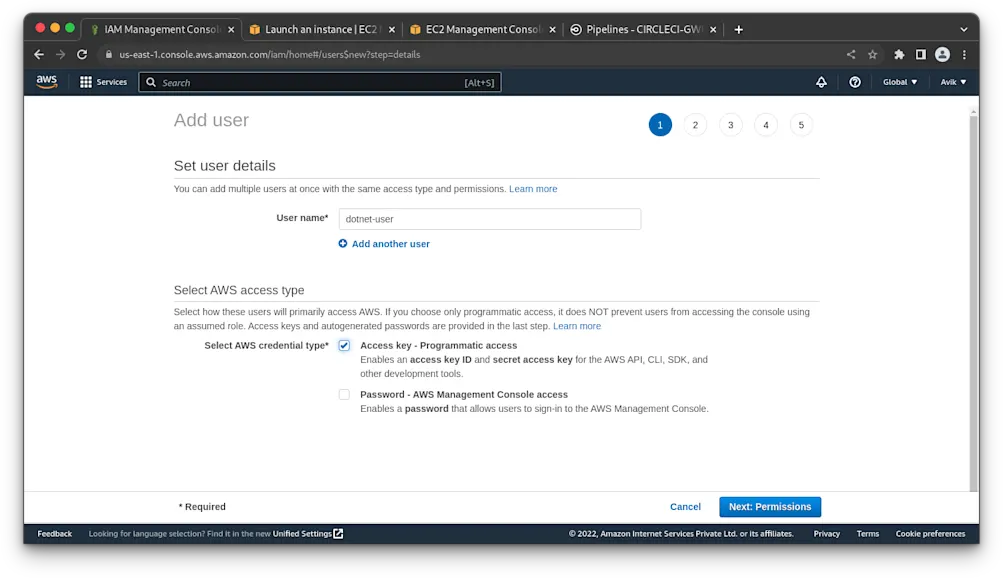

In the IAM console, go to IAM users and click Create user. Enter a unique name. I called mine dotnet-user. Click Next.

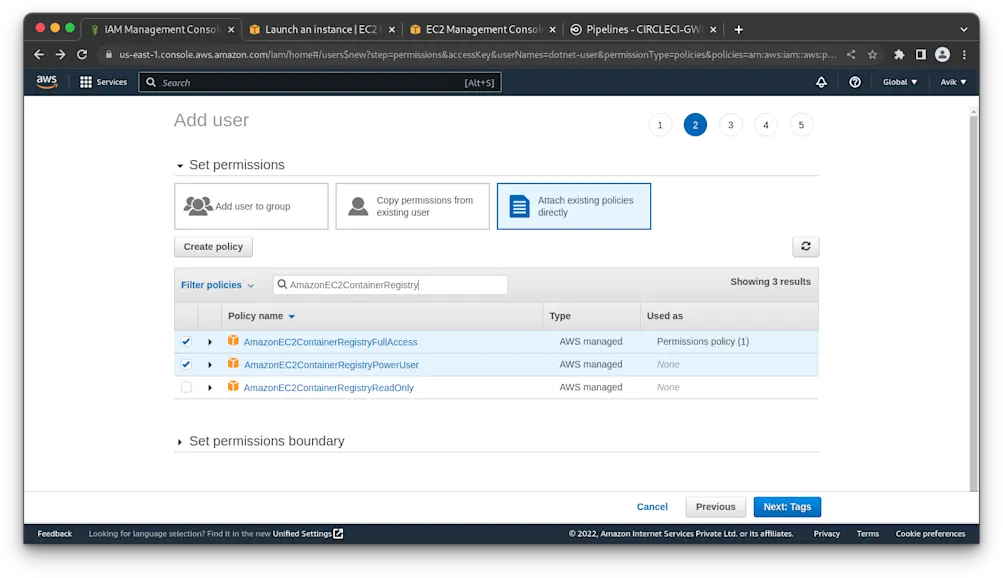

Next, set permissions for the user. Click Attach policies directly, search for ContainerRegistry, and select AmazonEC2ContainerRegistryFullAccess. This policy lets the pipeline create a private repository for the image and push images to it. For production pipelines, consider a custom policy that grants only the Amazon ECR actions the pipeline needs.
Click Next, review the details, and click Create user.
The pipeline needs programmatic access to AWS, so create an access key for the user. Click the user name, open the Security credentials tab, and click Create access key. On the Access key best practices & alternatives page, choose Other and click Next. Optionally, add a description tag, then click Create access key.

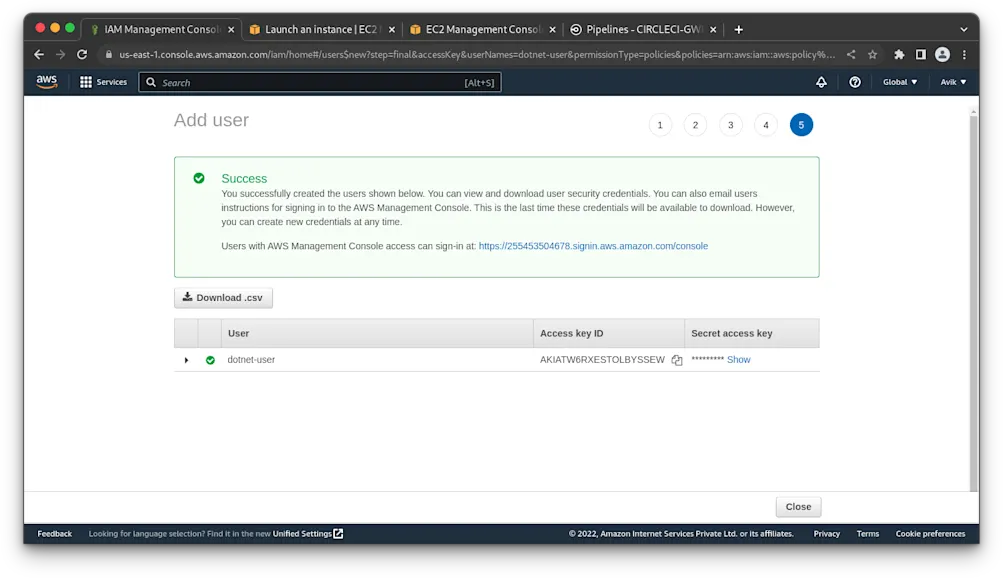

The Retrieve access keys page is displayed only once, so make a note of the Access key and the Secret access key. If you prefer, you can download a .csv file that contains the same credentials.
Note: Long-lived access keys are the quickest way to get started. For production pipelines, consider using OpenID Connect (OIDC) instead, so CircleCI can assume an IAM role without storing any AWS keys.
Automating container image deployment
Next, you will use CircleCI to automate the deployment of your Docker image to Amazon ECR. To easily do this, you will leverage the CircleCI orb named circleci/aws-ecr specifically created with commands to automatically:
- Build a Docker image
- Login to Amazon container registry
- Create an Amazon ECR repo, if one doesn’t exist and
- Push the image to Amazon ECR
The downloaded project already contains a .circleci folder with a config.yml file in it. Open the config.yml file and make sure it has this content:
version: 2.1
orbs:
aws-cli: circleci/aws-cli@5.4.2
aws-ecr: circleci/aws-ecr@10.0.0
workflows:
build_and_push_image:
jobs:
- aws-ecr/build_and_push_image:
context: dev
auth:
- aws-cli/setup
create_repo: true
dockerfile: Dockerfile
path: .
repo: dotnet-ecr
tag: "$CIRCLE_SHA1"
This configuration file uses the Amazon Elastic Container Registry orb to build and deploy the Docker image. The dockerfile parameter specifies the path to the Dockerfile.
The repo parameter specifies the ECR repository as dotnet-ecr. This will be created if it doesn’t exist, as set by the create_repo parameter. The auth parameter runs the aws-cli/setup command from the AWS CLI orb, which configures the AWS CLI with the credentials stored in the context. Also, to successfully deploy images to Amazon ECR, it is required that you supply your Amazon credentials. For that, you should use contexts in CircleCI.
Adding Context for Amazon ECR credentials
From your CircleCI dashboard, click Org in the sidebar to open the organization settings. If you don’t see Org, click More in the sidebar, then Org.

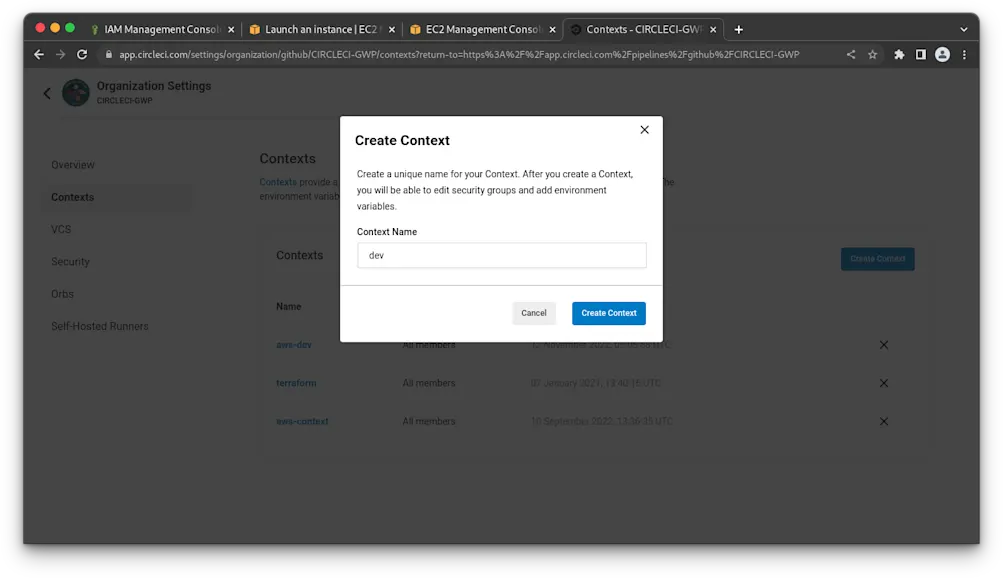

Then, select Contexts, click the Create context button, and add a unique name for your Context. The Context appears in a list with security set to All members. This means that anyone in your organization can access this Context at runtime. As specified in the .circleci/config.yml configuration for this tutorial, the Context name should be dev.
Next, select the dev context. In the Environment variables section, click Add and add these variables:
AWS_ACCESS_KEY_ID- The AWS access key ID for thedotnet-userIAM user created earlier.AWS_SECRET_ACCESS_KEY- The AWS secret access key for thedotnet-userIAM user created earlier.AWS_ACCOUNT_ID- The 12-digit ID of the AWS account that owns the ECR registry. To find it, follow the AWS account ID instructions.AWS_DEFAULT_REGION- AWS region where your ECR resources will be located, for exampleus-east-2.
Connecting the application to CircleCI
Now you can change your remote repository URL if you cloned the repo for this tutorial and push your project to GitHub.

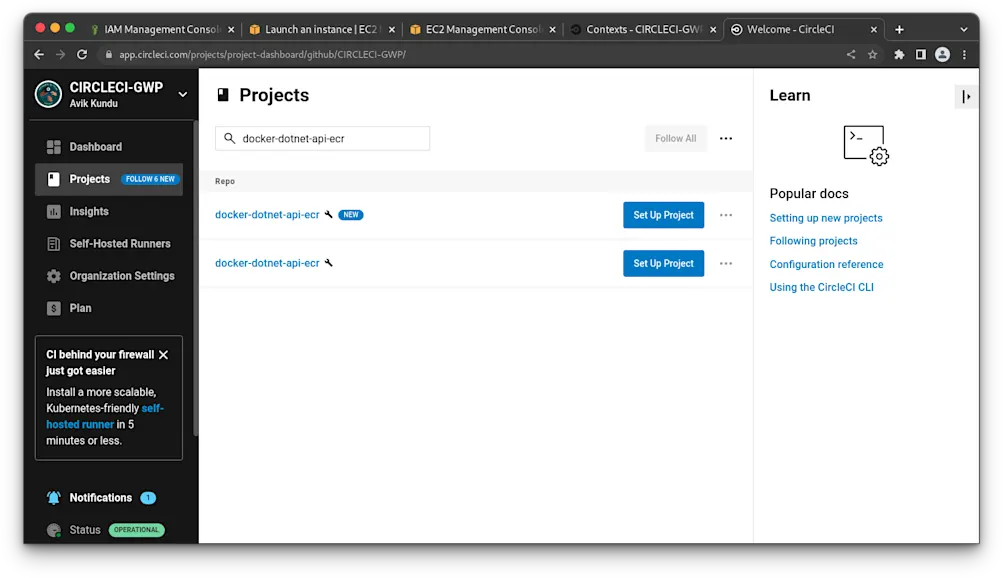

Log in to CircleCI and click Create project. Enter a project name and click Next. Under Create your first pipeline, connect GitHub if prompted and select the repository (docker-dotnet-api-ecr in this case). Keep the default pipeline name and the All pushes trigger, then click Next.

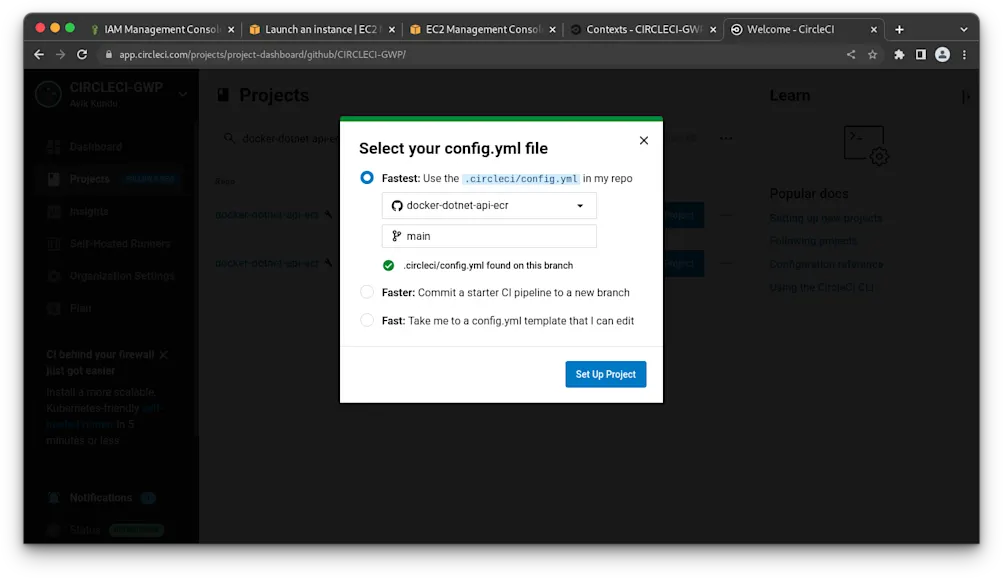

CircleCI detects the .circleci/config.yml file that’s already in the repository. Click Next, review the setup, and click Go to project.
If the organization still uses the CircleCI GitHub OAuth app, follow the create a project steps for that integration instead.

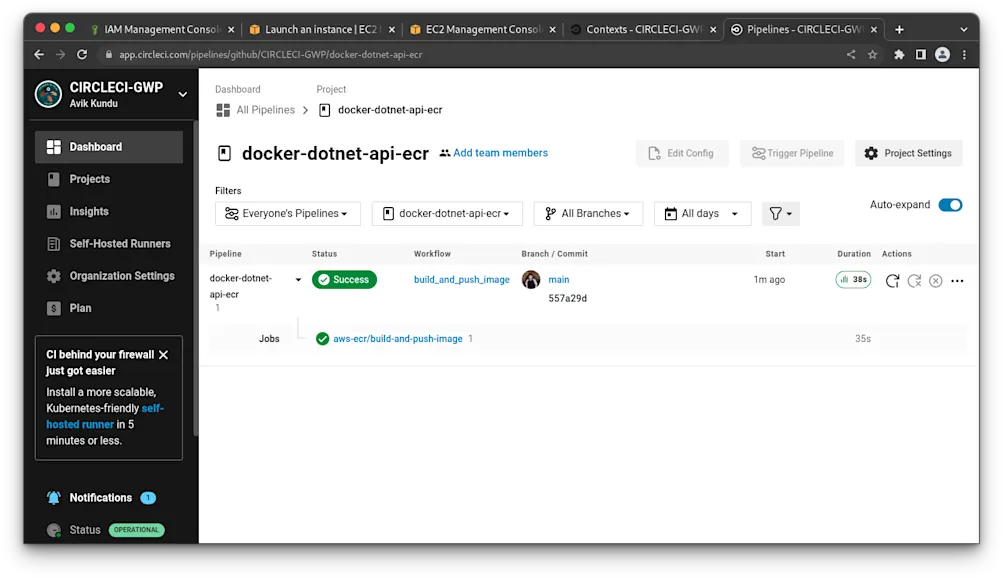

With the GitHub App flow, the pipeline runs on the next push, so push a commit to the repository to start it. Your first workflow will start running and complete successfully.

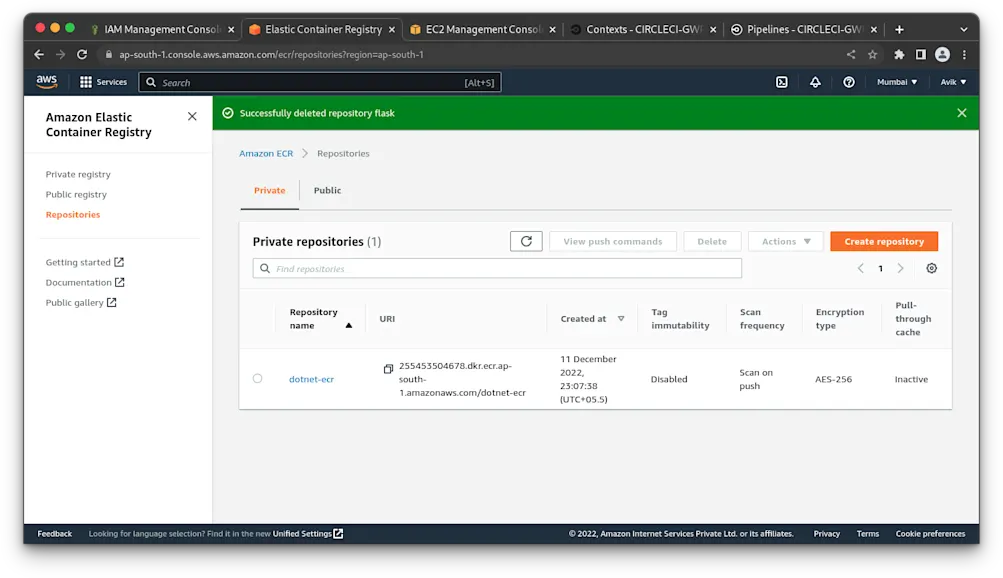

To view the repository information, go to your AWS management Console and open the dotnet-ecr repository.
Conclusion
With CircleCI deployment properly configured, you can easily make changes to your codebase, deploy to GitHub and be assured that your Docker image on Amazon container registry will always be updated with a new version without any manual effort from you.
For a broader look at continuous integration practices for .NET applications, check out our guide to CI/CD for .NET.
I hope that you found this tutorial helpful. Happy coding!
